Beoordeel STI-tapset, 2-dlg, HSS-G, UN 1.5/8 x 8 (03195)

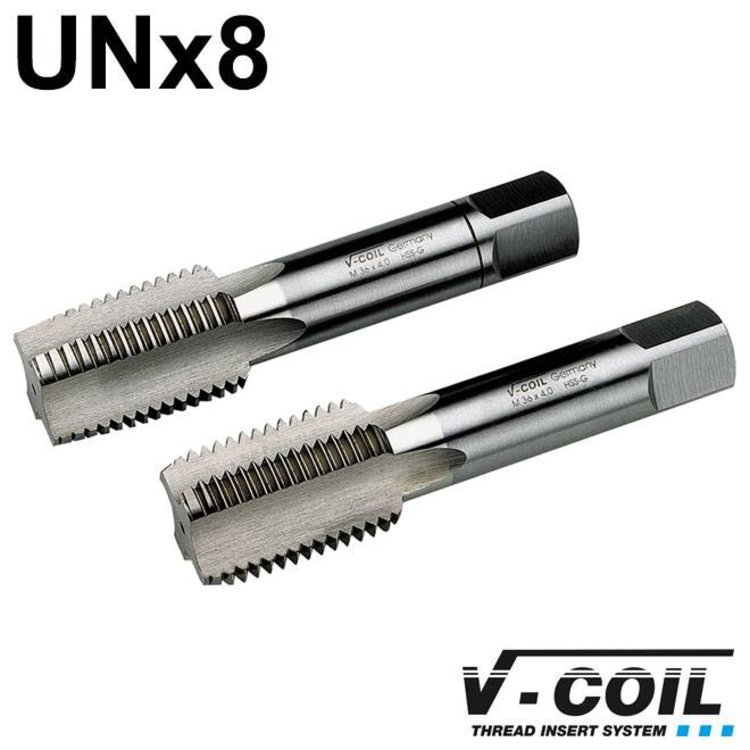

STI-tapset, 2-dlg, HSS-G, UN 1.5/8 x 8 (03195)

Artikelcode 161425
€247,20
(€299,11 Incl. btw)
Nominale grootte (D): UN 1.5/8 x 8, Tolerantie: 3B, Materiaal: HSS-G, Geschikt voor schroefdraadinserts met tolerantie 2B
op voorraad
Levering vanuit magazijn Duitsland - Verwachte levertijd 3-7 werkdagen* - Voor spoedleveringen bel of mail
Beschrijving

Let op! Gebruik STI-tappen alleen voor draadreparatie. De draadmaat vermeld bij de tap is gerelateerd aan de binnenschroefdraadmaat van de schroefdraadinsert.

Specificaties:
Schroefdraadsoort: Amerikaanse draad ANSI B 1.1
Afkorting schroefdraad: UN-8
Geschikt voor schroefdraadinserts met tolerantie 2B
Materiaal: HSS-G
Tolerantie: 3B
Nominale grootte (D): UN 1.5/8 x 8

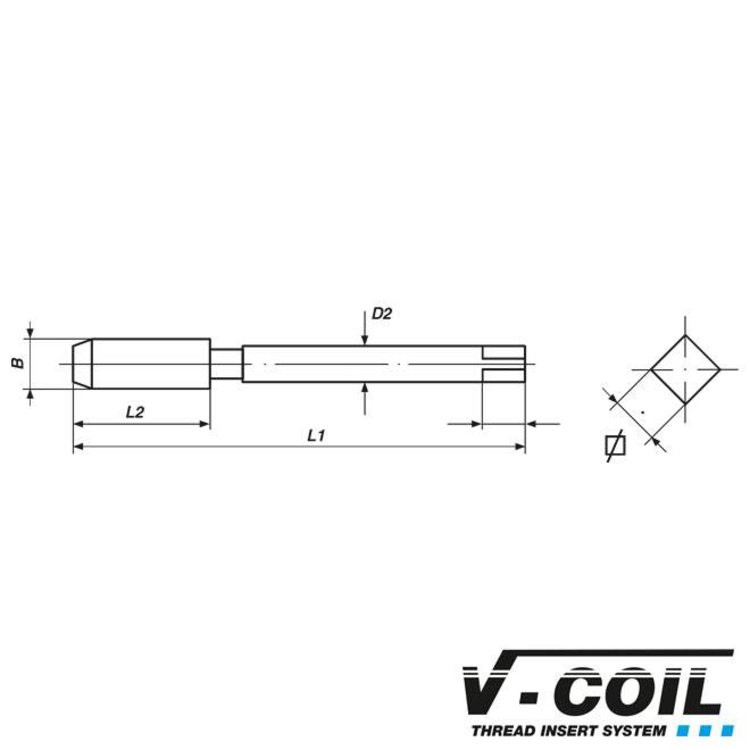

Diameter (B): 1.3/4 inch
Totale lengte (L1): 187.0mm
Snijlengte (L2): 67.0mm
Asdiameter (D2): 31.5mm
Vierkantaansluiting: 25.0mm

Geschikt voor:
Machinaal en handmatig gebruik
Goed verspaanbare materialen tot 900 N/mm²
Laag en ongelegeerd staal

Belangrijke mededeling:
Gebruik STI-tappen alleen voor draadreparatie. De draadmaat vermeld bij de tap is gerelateerd aan de binnenschroefdraadmaat van de schroefdraadinsert.

Merk: Völkel V-coil
Typenummer Völkel V-coil: 03195
